Marine Power Stabilizers MARVEL series

Pioneer product in the field of marine power stabilizers Made by Kawahara Electric Works.

Kawahara Electric Works' marine power stabilizer goes by the name of "Marvel." You may ask, "Why such a name?" The answer is that it has a brand new cooling system that, unlike conventional products, locates the blower on the front (operating face) of the stabilizer and exhausts air from the inside.
Wanting this system to be widely adopted around the world, we have yet to patent the technology, but it is the mainstream in marine power stabilizers today.
This de facto standard of a stabilizer was made by Kawahara Electric Works.

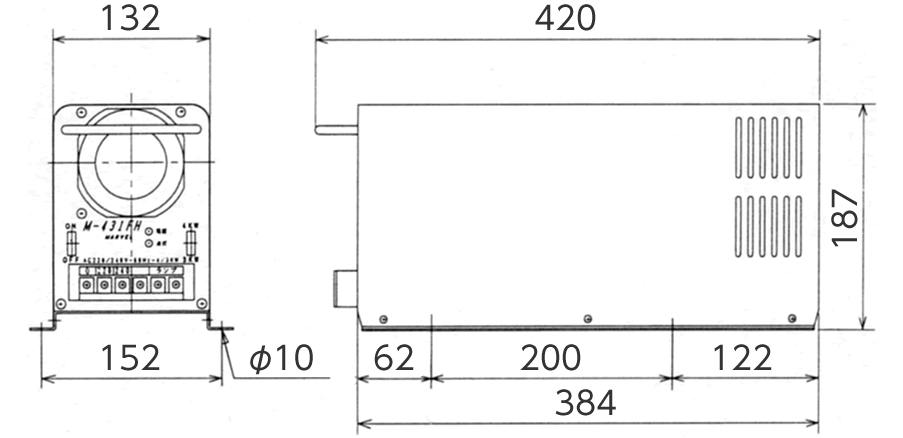

MARVEL Series M-431FH
MARVEL Series M-431FH

Feature

  • Fan-type to greatly reduce wear and tear
  • All models hunting-free
  • Capable of supporting 100% generator loads
  • Heat-resistant, saltwater-resistant coil for high reliability
  • Lighting verification via indicator lamp
  • Compact side for reduced weight

Line up

M-201FH

M-201FH
Application 2kW lamp x 1
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 7.8 / 7.4 A
Steady running 9.2 / 8.5 A
Weight 11.5 kg

M-301FH

M-301FH
Application 3kW lamp x 1
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 10.8 / 9.8 A
Steady running 13.5 / 12.7 A
Weight 14.1 kg

M-401FH

M-401FH
Application 4kW lamp x 1
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 14.5 / 15.8 A
Steady running 19.0 / 20.7 A
Weight 16.5 kg

M-431FH

M-431FH
Application 4/3kW lamp x 1
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 16.4 / 16.6 A
12.3 / 12.4 A
Steady running 17.6 / 16.8 A
13.4 / 12.5 A
Weight 16.5 kg

M-202FH

M-202FH
Application 2kW lamp x 2
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 15.6 / 14.8 A
Steady running 18.4 / 17.0 A
Weight 21.7 kg

M-302FH

M-302FH
Application 3kW lamp x 2
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 21.6 / 19.6 A
Steady running 27.0 / 25.4 A
Weight 27.5 kg

M-500FHC

M-500FHC
Application 5kW lamp x 1
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 11.2 / 9.6 A
Steady running 21.1 / 19.0 A
Weight 26.6 kg

M-100FH

M-100FH
Application 10kW lamp x 1
Voltage 1ø 240V / 220V
Frequency 60 Hz
Current Startup 39.0 / 42.0 A
Steady running 41.0 / 45.0 A
Weight 60 kg
